Part no. 6DWS202
Medium-sized drill rig with quick exchange plate and universal holder. For accurate drilling in heating, sanitary and electrical areas.
/ Versatile holder with motor quick exchange plate for all common drill motorsٜ
/ Collar adapter Ø 60 mm and reduction ring to Ø 56 mmٜ
/ Drill base to be used with dowels and vacuum, vacuum valve is integrated in the base plateٜ
/ 1 tool for every setting at the drill rig, fixed in the transport gripٜ
/ Quick alignment with centre indicator for holeٜ
/ Accurate alignment with horizontal levelٜ
/ Wide wheels with good driving properties for smooth and easy transportٜ
/ Measuring scale for the drilling depth and depth stop for perfect blind hole drillings
| / SPECIFICATIONS | |
| Length | 600 mm |
| Width | 320 mm |
| Height | 970 mm |
| Travel | 650 mm |
| Drilling Ø max. | 250 mm |
| Weight | 18.5 kg |
| Drilling angle adjustment | 15°, 30° and 45° |
/ RECOMMENDED DRILL MOTOR
EDM19P, EDM25, EDM30, WEKA-DKS15
/ POSSIBLE DRILL MOTOR
WEKA-DK16.3, WEKA-DK17
Accessories • Spare parts
Combined base plate
for dowel or vacuum fasten- ing with adjustment screw and axis
Part no. 6DWS82821
Motor plate
for RC250
Part no. 6DWS35000
Collar adapter
für RC250
Part no. 6ROB150005
Centre indicator for hole
for RC250
Part no. 6DWS82934
Feed lever
for RC250
Part no. 6DR400ZB20
Vacuum set
Part no. 6DWS202ZB03
Vacuum pump
Part no. 1-BZB01VP
/ More accessories in categorie Drilling accessories
RC250 components & equipment

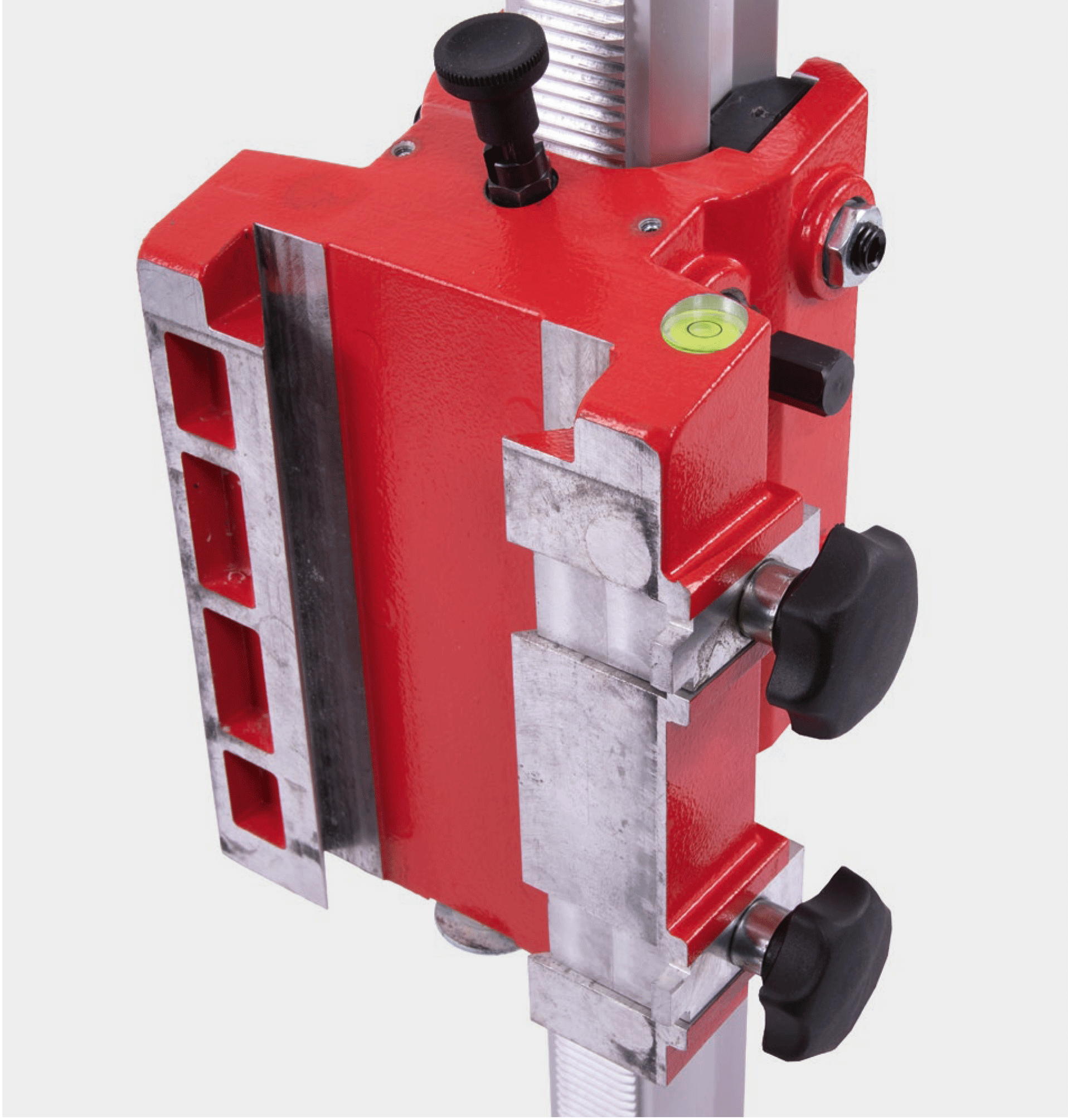

Feed carriage
/ Easy to adjustٜ
/ Tool-free removal of motor plate
Dowel base
/ Drilling angle adjustment to 0°, 15°, 30° and 45°
/ Level screwsٜ
/ Vacuum fastening possible
