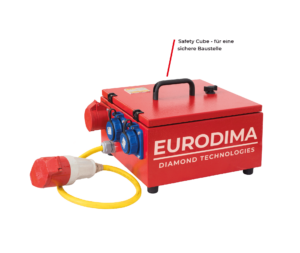

Safety Cube
Tools
Drill Bits
Cutting Discs
Diamond Saw Wires
EURODIMA produces core drilling rigs for drilling from mounting and anchor holes to deep and large hole drilling, in structural and civil engineering on walls, floors and ceilings.
The extensive drilling range offers the perfect combination of motor, drill stand and tools for every purpose. See for yourself!
The extensive drilling range offers the perfect combination of motor, drill stand and tools for every purpose. See for yourself!
Drill Motors
EDM19P
Wet connection with ball valve and Gardena plug fitting included. Transition piece with vacuum cleaner connection (Ø 35 mm) included. Use as freehand drilling motor or with suitable drill rig integrated PRCD circuit breaker in the cable. Additional handle for manual operation. Soft start. Air cooling. Mechanical, electronic and thermal overload protection. Metal case part made of cast aluminium. 1 piece each of single wrench SW32 and SW41 included. Clamping neck 60 mm. Plastic transport case.
User benefits
- 3-gear transmission
- Combination tool holder 1 ¼" UNC and R ½"
- Handle for freehand drilling with ergonomic handle shape
- Wet connection GEKA coupling
Specifications
Voltage
230 V~
Rated current
9,2 A
Power consumption
1900 W
Tool holder
1 ¼" UNC female thread and R ½" male thread
Mass
approx. 6,5 kg
On-load speed
550 min-1 / 1250 min-1 / 2700 min-1
More information
EDM25
Ball valve and Gardena plug fitting included. PRCD circuit breaker integrated in the cable. Soft start. Air cooling. Mechanical and electronic overload protection. Metal case made of cast aluminium. Use only with suitable drill rig. 1 each of open-end wrenches SW32 and SW41 included.
User benefits
- 2-gear transmission
- Metal case made of cast aluminium
- Wet connection
- Tool holder 1 ¼" UNC
- Ball valve with Gardena plug fitting
Specifications
Voltage
230 V~
Rated current
11,5 A
Power consumption
2500 W
Tool holder
1 ¼" UNC
Mass
approx. 10,5 kg
On-load speed
360 min-1 / 850 min-1
More information

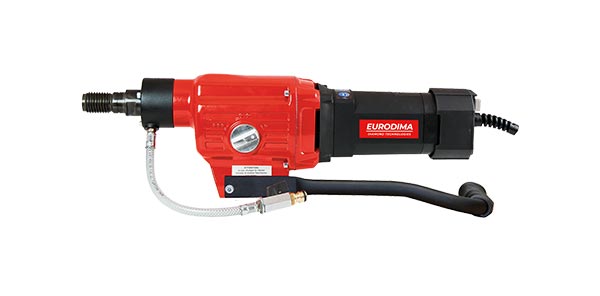

EDM30
Ball valve and Gardena plug fitting included. PRCD circuit breaker integrated in the cable. Soft start. Air cooling. Mechanical, electronic and thermal overload protection. Metal housing part made of cast aluminium. Use only with suitable drill rig. Transport handle included. 1 each of open-end wrenches SW32 and SW41 included.
User benefits
- 3-gear transmission
- Tool holder 1 ¼" UNC
- Ball valve/wet connection
- Ergonomically shaped handle
Specifications
Voltage
230 V~
Rated current
13,5 A
Power consumption
3000 W
Tool holder
1 ¼“ UNC
Mass
approx. 12,4 kg
On-load speed
230 min-1 / 500 min-1 / 1030 min-1
Max. Drilling diameter
350 mm / 150 mm / 60 mm
More information
EDM33
Ball valve and Gardena plug fitting. PRCD circuit breaker integrated in the cable. Soft start. Air cooling. Mechanical and electronic overload protection. Robust all-aluminium case. Use only with suitable drill rig. Transport handle included. 1 each of open-end wrenches SW32 and SW41 included.
User benefits
- 3-gear transmission
- 1 ¼“ UNC reception
- Ergonomically shaped handle
Specifications
Voltage
230 V~
Rated current
15,9 A
Power consumption
3300 W
Tool holder
1 ¼" UNC
Mass
approx. 15,3 kg
On-load speed
180 min-1 / 400 min-1 / 780 min-1
More information
WEKA drill motor DKS15
Dry drilling in different substrates. The optionally activatable soft hammer function supports the powerful 2,000 W motor and accelerates the working speed in reinforced concrete and hard materials.
User benefits
Specifications
Voltage
230 V~
Power consumption
2.000 W
Tool holder
1 ¼" UNC
Weight
5.0 kg
Collar Ø
60 mm
More information
WEKA drill motor DK17 (WDM17)
Powerful core drilling motor, ideal for dry and wet drilling, stable construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication and overload clutch, motor protection and soft start due to Intellitronik.
User benefits
- 3-gear transmission
- Intellitronik - Motor protection and soft start
- Levelling aid with two integrated spirit levels
Specifications
Voltage
230 V~
Power consumption
2000 W
On-load speed
40 min-1 / 1200 min-1 / 2520 min-1
Tool holder
1 ¼“ + Adaptor G ½“
Max. Drilling diameter
20 - 200 mm
Mass
6,3 kg
More information
WEKA drill motor DK1603 (WDM18)
Powerful core drilling motor, stable construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication and overload clutch, motor protection and soft start by Intellitronik.
User benefits
- 3-gear transmission
- Intellitronik - Motor protection and soft start
- Levelling aid with two integrated spirit levels
Specifications
Voltage
230 V~
Power consumption
2000 W
On-load speed
540 min-1 / 1200 min-1 / 2520 min-1
Tool holder
1 ¼“ + Adaptor G ½“
Max. Drilling diameter
20 - 200 mm
Mass
11,9 kg
More information
WEKA drill motor DK26 (WDM26)
Oil bath gearbox with oil pump. High performance overload coupling. Motor protection and soft start with smart electronics
User benefits
- Oil bath gearbox with oil pump
- High performance overload coupling
- Motor protection and soft start with smart electronics
Specifications
Voltage
230 V~
Nominal current
12.5 A
Power consumption
2.600 W
Nominal speed
320 / 630 / 90 rpm
Tool holder
1 ¼"
max. drilling diameter
40-250 mm
Weight
11.6 kg
More information
WEKA drill motor DK32 (WDM32)
Very powerful core drilling motor with 3200W, solid construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication, overload clutch and oil pump, motor protection and soft start by Intellitronik.
User benefits
- 3-gear transmission
- High performance & overload clutch
- Intellitronik - motor protection and soft start
- Antifriction - element for easy release of the drill bit
Specifications
Voltage
230 V
Power consumption
3200 W
On-load speed
230 min-1 / 480 min-1 / 720 min-1
Tool holder
1 ¼“
Max. drilling diameter
55 - 350 mm
Mass
11,9 kg
More information
WEKA drill motor SR25 (WDM25)
Extremely powerful, water-cooled SR motor with 3700W, stable construction thanks to full metal housing, compact dimensions, gearbox with oil bath lubrication, overload clutch and oil pump.
User benefits
- Powerful water-cooled SR motor
- Gearbox with oil bath lubrication and oil pump
- High Performance & Overload Coupling
Specifications
Voltage
230 V
Power consumption
3700 W
On-load speed
230 min-1 / 280 min-1 / 340 min-1 / 410 min-1 / 490 min-1 / 570 min-1
Max. drilling diameter
80 - 370 mm
Mass
14,7 kg
More information

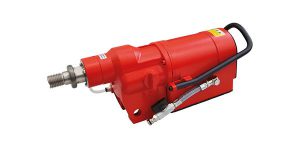

WEKA drill motor SR38 (WDM38)
Extremely powerful, water-cooled SR motor with 3700W, stable construction thanks to full metal housing, compact dimensions, gearbox with oil bath lubrication, overload clutch and oil pump, very wide drilling range.
User benefits
- Powerful water-cooled SR motor
- High Performance & Overload Coupling
- Suitable for overhead drilling
Specifications
Voltage
230 V
Power consumption
3700 W
On-load speed
180 / 220 / 260 / 320 / 280 / 445 min-1 / 360 / 430 / 520 / 630 / 755 / 880 min-1 / 560 / 670 / 810 / 980 / 1180 / 1370 min-1
Tool holder
1 ¼“ + Adaptor G ½“
Max. drilling diameter
40 - 400 mm
Mass
16,5 kg
More information
WEKA drill motor DK42 / E (WDM42)
Extremely powerful, water-cooled three-phase motor, stable construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication, overload clutch and oil pump.
User benefits
- Powerful and robust water-cooled three-phase motor
- 3-speed gearbox with oil bath lubrication and oil pump
- Antifriction element for easy removal of the drill bit
- Suitable for overhead drilling
Specifications
Voltage
400 V
Power consumption
3900 W
On-load speed
160 min-1 / 310 min-1 / 490 min-1
Tool holder
1 ¼“
Max. drilling diameter
70 - 400 mm
Mass
19 kg
More information
WEKA drill motor DK52 / E (WDM52 / WDM52E)
Extremely powerful, water-cooled three-phase motor, stable construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication, overload clutch and oil pump.
User benefits
- Powerful and robust water-cooled three-phase motor
- 3-speed gearbox with oil bath lubrication and oil pump
- Antifriction element for easy removal of the drill bit
Specifications
Voltage
400 V
Power consumption
5200 W
On-load speed
130 min-1 / 260 min-1 / 410 min-1
Tool holder
1 ¼“
Max. drilling diameter
110 - 500 mm
Mass
22,9 kg
More information
WEKA drill motor SR68 Jumbo (WDM68)
Extremely powerful, water-cooled SR motor with 7500W, sturdy construction
User benefits
- Extremely powerful water-cooled SR motor
- Drill diameter display in the display
- 6 motor speeds selectable during drilling
- Overload clutch/water cooling
Specifications
Voltage
400 V
Power consumption
7500 W
On-load speed
140 / 175 / 205 / 240 / 270 / 305 min-1
Tool holder
1 ¼“
Max. drilling diameter
120 - 500 mm
Mass
18,3 kg
More information

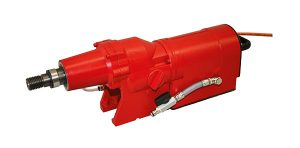

WEKA drill motor SR75 Jumbo (WDM75)
Extremely powerful, water-cooled SR motor with 7500W, stable construction thanks to full metal housing, gearbox with oil bath lubrication, overload clutch and oil pump.
User benefits
- Extremely powerful water-cooled SR motor
- Information output via display
- 3-speed manual transmission x 5 engine speeds
- Integrated operating hours counter
Specifications
Voltage
400 V
Power consumption
7500 W
On-load speed
60 / 70 / 85 / 100 / 115 min-1 / 115 / 140 / 165 / 200 / 230 min-1 / 180 / 215 / 260 / 310 / 360 min-1
Tool holder
M33 incl. adaptor
Max. drilling diameter
150 - 900 mm
Mass
19,5 kg
More information
EDM19P
Wet connection with ball valve and Gardena plug fitting included. Transition piece with vacuum cleaner connection (Ø 35 mm) included. Use as freehand drilling motor or with suitable drill rig integrated PRCD circuit breaker in the cable. Additional handle for manual operation. Soft start. Air cooling. Mechanical, electronic and thermal overload protection. Metal case part made of cast aluminium. 1 piece each of single wrench SW32 and SW41 included. Clamping neck 60 mm. Plastic transport case.
User benefits
- 3-gear transmission
- Combination tool holder 1 ¼" UNC and R ½"
- Handle for freehand drilling with ergonomic handle shape
- Wet connection GEKA coupling
Specifications
Voltage
230 V~
Rated current
9,2 A
Power consumption
1900 W
Tool holder
1 ¼" UNC female thread and R ½" male thread
Mass
approx. 6,5 kg
On-load speed
550 min-1 / 1250 min-1 / 2700 min-1
More information
EDM25
Ball valve and Gardena plug fitting included. PRCD circuit breaker integrated in the cable. Soft start. Air cooling. Mechanical and electronic overload protection. Metal case made of cast aluminium. Use only with suitable drill rig. 1 each of open-end wrenches SW32 and SW41 included.
User benefits
- 2-gear transmission
- Metal case made of cast aluminium
- Wet connection
- Tool holder 1 ¼" UNC
- Ball valve with Gardena plug fitting
Specifications
Voltage
230 V~
Rated current
11,5 A
Power consumption
2500 W
Tool holder
1 ¼" UNC
Mass
approx. 10,5 kg
On-load speed
360 min-1 / 850 min-1
More information
EDM30
Ball valve and Gardena plug fitting included. PRCD circuit breaker integrated in the cable. Soft start. Air cooling. Mechanical, electronic and thermal overload protection. Metal housing part made of cast aluminium. Use only with suitable drill rig. Transport handle included. 1 each of open-end wrenches SW32 and SW41 included.
User benefits
- 3-gear transmission
- Tool holder 1 ¼" UNC
- Ball valve/wet connection
- Ergonomically shaped handle
Specifications
Voltage
230 V~
Rated current
13,5 A
Power consumption
3000 W
Tool holder
1 ¼“ UNC
Mass
approx. 12,4 kg
On-load speed
230 min-1 / 500 min-1 / 1030 min-1
Max. Drilling diameter
350 mm / 150 mm / 60 mm
More information
EDM33
Ball valve and Gardena plug fitting. PRCD circuit breaker integrated in the cable. Soft start. Air cooling. Mechanical and electronic overload protection. Robust all-aluminium case. Use only with suitable drill rig. Transport handle included. 1 each of open-end wrenches SW32 and SW41 included.
User benefits
- 3-gear transmission
- 1 ¼“ UNC reception
- Ergonomically shaped handle
Specifications
Voltage
230 V~
Rated current
15,9 A
Power consumption
3300 W
Tool holder
1 ¼" UNC
Mass
approx. 15,3 kg
On-load speed
180 min-1 / 400 min-1 / 780 min-1
More information
WEKA drill motor DKS15
Dry drilling in different substrates. The optionally activatable soft hammer function supports the powerful 2,000 W motor and accelerates the working speed in reinforced concrete and hard materials.
User benefits
Specifications
Voltage
230 V~
Power consumption
2.000 W
Tool holder
1 ¼" UNC
Weight
5.0 kg
Collar Ø
60 mm
More information
WEKA drill motor DK17 (WDM17)
Powerful core drilling motor, ideal for dry and wet drilling, stable construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication and overload clutch, motor protection and soft start due to Intellitronik.
User benefits
- 3-gear transmission
- Intellitronik - Motor protection and soft start
- Levelling aid with two integrated spirit levels
Specifications
Voltage
230 V~
Power consumption
2000 W
On-load speed
40 min-1 / 1200 min-1 / 2520 min-1
Tool holder
1 ¼“ + Adaptor G ½“
Max. Drilling diameter
20 - 200 mm
Mass
6,3 kg
More information
WEKA drill motor DK1603 (WDM18)
Powerful core drilling motor, stable construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication and overload clutch, motor protection and soft start by Intellitronik.
User benefits
- 3-gear transmission
- Intellitronik - Motor protection and soft start
- Levelling aid with two integrated spirit levels
Specifications
Voltage
230 V~
Power consumption
2000 W
On-load speed
540 min-1 / 1200 min-1 / 2520 min-1
Tool holder
1 ¼“ + Adaptor G ½“
Max. Drilling diameter
20 - 200 mm
Mass
11,9 kg
More information
WEKA drill motor DK26 (WDM26)
Oil bath gearbox with oil pump. High performance overload coupling. Motor protection and soft start with smart electronics
User benefits
- Oil bath gearbox with oil pump
- High performance overload coupling
- Motor protection and soft start with smart electronics
Specifications
Voltage
230 V~
Nominal current
12.5 A
Power consumption
2.600 W
Nominal speed
320 / 630 / 90 rpm
Tool holder
1 ¼"
max. drilling diameter
40-250 mm
Weight
11.6 kg
More information
WEKA drill motor DK32 (WDM32)
Very powerful core drilling motor with 3200W, solid construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication, overload clutch and oil pump, motor protection and soft start by Intellitronik.
User benefits
- 3-gear transmission
- High performance & overload clutch
- Intellitronik - motor protection and soft start
- Antifriction - element for easy release of the drill bit
Specifications
Voltage
230 V
Power consumption
3200 W
On-load speed
230 min-1 / 480 min-1 / 720 min-1
Tool holder
1 ¼“
Max. drilling diameter
55 - 350 mm
Mass
11,9 kg
More information
WEKA drill motor SR25 (WDM25)
Extremely powerful, water-cooled SR motor with 3700W, stable construction thanks to full metal housing, compact dimensions, gearbox with oil bath lubrication, overload clutch and oil pump.
User benefits
- Powerful water-cooled SR motor
- Gearbox with oil bath lubrication and oil pump
- High Performance & Overload Coupling
Specifications
Voltage
230 V
Power consumption
3700 W
On-load speed
230 min-1 / 280 min-1 / 340 min-1 / 410 min-1 / 490 min-1 / 570 min-1
Max. drilling diameter
80 - 370 mm
Mass
14,7 kg
More information
WEKA drill motor SR38 (WDM38)
Extremely powerful, water-cooled SR motor with 3700W, stable construction thanks to full metal housing, compact dimensions, gearbox with oil bath lubrication, overload clutch and oil pump, very wide drilling range.
User benefits
- Powerful water-cooled SR motor
- High Performance & Overload Coupling
- Suitable for overhead drilling
Specifications
Voltage
230 V
Power consumption
3700 W
On-load speed
180 / 220 / 260 / 320 / 280 / 445 min-1 / 360 / 430 / 520 / 630 / 755 / 880 min-1 / 560 / 670 / 810 / 980 / 1180 / 1370 min-1
Tool holder
1 ¼“ + Adaptor G ½“
Max. drilling diameter
40 - 400 mm
Mass
16,5 kg
More information
WEKA drill motor DK42 / E (WDM42)
Extremely powerful, water-cooled three-phase motor, stable construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication, overload clutch and oil pump.
User benefits
- Powerful and robust water-cooled three-phase motor
- 3-speed gearbox with oil bath lubrication and oil pump
- Antifriction element for easy removal of the drill bit
- Suitable for overhead drilling
Specifications
Voltage
400 V
Power consumption
3900 W
On-load speed
160 min-1 / 310 min-1 / 490 min-1
Tool holder
1 ¼“
Max. drilling diameter
70 - 400 mm
Mass
19 kg
More information
WEKA drill motor DK52 / E (WDM52 / WDM52E)
Extremely powerful, water-cooled three-phase motor, stable construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication, overload clutch and oil pump.
User benefits
- Powerful and robust water-cooled three-phase motor
- 3-speed gearbox with oil bath lubrication and oil pump
- Antifriction element for easy removal of the drill bit
Specifications
Voltage
400 V
Power consumption
5200 W
On-load speed
130 min-1 / 260 min-1 / 410 min-1
Tool holder
1 ¼“
Max. drilling diameter
110 - 500 mm
Mass
22,9 kg
More information
WEKA drill motor SR68 Jumbo (WDM68)
Extremely powerful, water-cooled SR motor with 7500W, sturdy construction
User benefits
- Extremely powerful water-cooled SR motor
- Drill diameter display in the display
- 6 motor speeds selectable during drilling
- Overload clutch/water cooling
Specifications
Voltage
400 V
Power consumption
7500 W
On-load speed
140 / 175 / 205 / 240 / 270 / 305 min-1
Tool holder
1 ¼“
Max. drilling diameter
120 - 500 mm
Mass
18,3 kg
More information
WEKA drill motor SR75 Jumbo (WDM75)
Extremely powerful, water-cooled SR motor with 7500W, stable construction thanks to full metal housing, gearbox with oil bath lubrication, overload clutch and oil pump.
User benefits
- Extremely powerful water-cooled SR motor
- Information output via display
- 3-speed manual transmission x 5 engine speeds
- Integrated operating hours counter
Specifications
Voltage
400 V
Power consumption
7500 W
On-load speed
60 / 70 / 85 / 100 / 115 min-1 / 115 / 140 / 165 / 200 / 230 min-1 / 180 / 215 / 260 / 310 / 360 min-1
Tool holder
M33 incl. adaptor
Max. drilling diameter
150 - 900 mm
Mass
19,5 kg
More information
EDM19P
Wet connection with ball valve and Gardena plug fitting included. Transition piece with vacuum cleaner connection (Ø 35 mm) included. Use as freehand drilling motor or with suitable drill rig integrated PRCD circuit breaker in the cable. Additional handle for manual operation. Soft start. Air cooling. Mechanical, electronic and thermal overload protection. Metal case part made of cast aluminium. 1 piece each of single wrench SW32 and SW41 included. Clamping neck 60 mm. Plastic transport case.
User benefits
- 3-gear transmission
- Combination tool holder 1 ¼" UNC and R ½"
- Handle for freehand drilling with ergonomic handle shape
- Wet connection GEKA coupling
Specifications
Voltage
230 V~
Rated current
9,2 A
Power consumption
1900 W
Tool holder
1 ¼" UNC female thread and R ½" male thread
Mass
approx. 6,5 kg
On-load speed
550 min-1 / 1250 min-1 / 2700 min-1
More information
EDM25
Ball valve and Gardena plug fitting included. PRCD circuit breaker integrated in the cable. Soft start. Air cooling. Mechanical and electronic overload protection. Metal case made of cast aluminium. Use only with suitable drill rig. 1 each of open-end wrenches SW32 and SW41 included.
User benefits
- 2-gear transmission
- Metal case made of cast aluminium
- Wet connection
- Tool holder 1 ¼" UNC
- Ball valve with Gardena plug fitting
Specifications
Voltage
230 V~
Rated current
11,5 A
Power consumption
2500 W
Tool holder
1 ¼" UNC
Mass
approx. 10,5 kg
On-load speed
360 min-1 / 850 min-1
More information
EDM30
Ball valve and Gardena plug fitting included. PRCD circuit breaker integrated in the cable. Soft start. Air cooling. Mechanical, electronic and thermal overload protection. Metal housing part made of cast aluminium. Use only with suitable drill rig. Transport handle included. 1 each of open-end wrenches SW32 and SW41 included.
User benefits
- 3-gear transmission
- Tool holder 1 ¼" UNC
- Ball valve/wet connection
- Ergonomically shaped handle
Specifications
Voltage
230 V~
Rated current
13,5 A
Power consumption
3000 W
Tool holder
1 ¼“ UNC
Mass
approx. 12,4 kg
On-load speed
230 min-1 / 500 min-1 / 1030 min-1
Max. Drilling diameter
350 mm / 150 mm / 60 mm
More information
EDM33
Ball valve and Gardena plug fitting. PRCD circuit breaker integrated in the cable. Soft start. Air cooling. Mechanical and electronic overload protection. Robust all-aluminium case. Use only with suitable drill rig. Transport handle included. 1 each of open-end wrenches SW32 and SW41 included.
User benefits
- 3-gear transmission
- 1 ¼“ UNC reception
- Ergonomically shaped handle
Specifications
Voltage
230 V~
Rated current
15,9 A
Power consumption
3300 W
Tool holder
1 ¼" UNC
Mass
approx. 15,3 kg
On-load speed
180 min-1 / 400 min-1 / 780 min-1
More information
WEKA drill motor DKS15
Dry drilling in different substrates. The optionally activatable soft hammer function supports the powerful 2,000 W motor and accelerates the working speed in reinforced concrete and hard materials.
User benefits
Specifications
Voltage
230 V~
Power consumption
2.000 W
Tool holder
1 ¼" UNC
Weight
5.0 kg
Collar Ø
60 mm
More information
WEKA drill motor DK17 (WDM17)
Powerful core drilling motor, ideal for dry and wet drilling, stable construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication and overload clutch, motor protection and soft start due to Intellitronik.
User benefits
- 3-gear transmission
- Intellitronik - Motor protection and soft start
- Levelling aid with two integrated spirit levels
Specifications
Voltage
230 V~
Power consumption
2000 W
On-load speed
40 min-1 / 1200 min-1 / 2520 min-1
Tool holder
1 ¼“ + Adaptor G ½“
Max. Drilling diameter
20 - 200 mm
Mass
6,3 kg
More information
WEKA drill motor DK1603 (WDM18)
Powerful core drilling motor, stable construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication and overload clutch, motor protection and soft start by Intellitronik.
User benefits
- 3-gear transmission
- Intellitronik - Motor protection and soft start
- Levelling aid with two integrated spirit levels
Specifications
Voltage
230 V~
Power consumption
2000 W
On-load speed
540 min-1 / 1200 min-1 / 2520 min-1
Tool holder
1 ¼“ + Adaptor G ½“
Max. Drilling diameter
20 - 200 mm
Mass
11,9 kg
More information
WEKA drill motor DK26 (WDM26)
Oil bath gearbox with oil pump. High performance overload coupling. Motor protection and soft start with smart electronics
User benefits
- Oil bath gearbox with oil pump
- High performance overload coupling
- Motor protection and soft start with smart electronics
Specifications
Voltage
230 V~
Nominal current
12.5 A
Power consumption
2.600 W
Nominal speed
320 / 630 / 90 rpm
Tool holder
1 ¼"
max. drilling diameter
40-250 mm
Weight
11.6 kg
More information
WEKA drill motor DK32 (WDM32)
Very powerful core drilling motor with 3200W, solid construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication, overload clutch and oil pump, motor protection and soft start by Intellitronik.
User benefits
- 3-gear transmission
- High performance & overload clutch
- Intellitronik - motor protection and soft start
- Antifriction - element for easy release of the drill bit
Specifications
Voltage
230 V
Power consumption
3200 W
On-load speed
230 min-1 / 480 min-1 / 720 min-1
Tool holder
1 ¼“
Max. drilling diameter
55 - 350 mm
Mass
11,9 kg
More information
WEKA drill motor SR25 (WDM25)
Extremely powerful, water-cooled SR motor with 3700W, stable construction thanks to full metal housing, compact dimensions, gearbox with oil bath lubrication, overload clutch and oil pump.
User benefits
- Powerful water-cooled SR motor
- Gearbox with oil bath lubrication and oil pump
- High Performance & Overload Coupling
Specifications
Voltage
230 V
Power consumption
3700 W
On-load speed
230 min-1 / 280 min-1 / 340 min-1 / 410 min-1 / 490 min-1 / 570 min-1
Max. drilling diameter
80 - 370 mm
Mass
14,7 kg
More information
WEKA drill motor SR38 (WDM38)
Extremely powerful, water-cooled SR motor with 3700W, stable construction thanks to full metal housing, compact dimensions, gearbox with oil bath lubrication, overload clutch and oil pump, very wide drilling range.
User benefits
- Powerful water-cooled SR motor
- High Performance & Overload Coupling
- Suitable for overhead drilling
Specifications
Voltage
230 V
Power consumption
3700 W
On-load speed
180 / 220 / 260 / 320 / 280 / 445 min-1 / 360 / 430 / 520 / 630 / 755 / 880 min-1 / 560 / 670 / 810 / 980 / 1180 / 1370 min-1
Tool holder
1 ¼“ + Adaptor G ½“
Max. drilling diameter
40 - 400 mm
Mass
16,5 kg
More information
WEKA drill motor DK42 / E (WDM42)
Extremely powerful, water-cooled three-phase motor, stable construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication, overload clutch and oil pump.
User benefits
- Powerful and robust water-cooled three-phase motor
- 3-speed gearbox with oil bath lubrication and oil pump
- Antifriction element for easy removal of the drill bit
- Suitable for overhead drilling
Specifications
Voltage
400 V
Power consumption
3900 W
On-load speed
160 min-1 / 310 min-1 / 490 min-1
Tool holder
1 ¼“
Max. drilling diameter
70 - 400 mm
Mass
19 kg
More information
WEKA drill motor DK52 / E (WDM52 / WDM52E)
Extremely powerful, water-cooled three-phase motor, stable construction thanks to full metal housing, 3-speed gearbox with oil bath lubrication, overload clutch and oil pump.
User benefits
- Powerful and robust water-cooled three-phase motor
- 3-speed gearbox with oil bath lubrication and oil pump
- Antifriction element for easy removal of the drill bit
Specifications
Voltage
400 V
Power consumption
5200 W
On-load speed
130 min-1 / 260 min-1 / 410 min-1
Tool holder
1 ¼“
Max. drilling diameter
110 - 500 mm
Mass
22,9 kg
More information
WEKA drill motor SR68 Jumbo (WDM68)
Extremely powerful, water-cooled SR motor with 7500W, sturdy construction
User benefits
- Extremely powerful water-cooled SR motor
- Drill diameter display in the display
- 6 motor speeds selectable during drilling
- Overload clutch/water cooling
Specifications
Voltage
400 V
Power consumption
7500 W
On-load speed
140 / 175 / 205 / 240 / 270 / 305 min-1
Tool holder
1 ¼“
Max. drilling diameter
120 - 500 mm
Mass
18,3 kg
More information
WEKA drill motor SR75 Jumbo (WDM75)
Extremely powerful, water-cooled SR motor with 7500W, stable construction thanks to full metal housing, gearbox with oil bath lubrication, overload clutch and oil pump.
User benefits
- Extremely powerful water-cooled SR motor
- Information output via display
- 3-speed manual transmission x 5 engine speeds
- Integrated operating hours counter
Specifications
Voltage
400 V
Power consumption
7500 W
On-load speed
60 / 70 / 85 / 100 / 115 min-1 / 115 / 140 / 165 / 200 / 230 min-1 / 180 / 215 / 260 / 310 / 360 min-1
Tool holder
M33 incl. adaptor
Max. drilling diameter
150 - 900 mm
Mass
19,5 kg
More information
Drill Rigs
DR400A
The professional drill rig for dimensionally accurate drilling up to a diameter of 400 mm, ideal for larger drilling operations in the entire construction sector.
User benefits
- Universal drill motor holder for all common drill motors
- Optional lowering with 1:1 or 1:3 fine feed gearbox
- Lowering unit can be actuated from both sides and can be used universally
- Adjustable up to 45° diagonally
- Feed slide with locking - guide rollers easy to adjust.
Specifications
Length
425 mm
Width
260 mm
Height
1000 mm
Stroke
640 mm
Drill-Ø
max 400 mm
Mass
21,4 kg
More information
DR400ASW
The professional drill rig for dimensionally accurate drilling up to a diameter of 400 mm, ideal for larger drilling operations in the entire construction sector.
User benefits
- Quick-change motor system
- Optional lowering with 1:1 or 1:3 fine feed gearbox
- Lowering unit can be actuated from both sides and can be used universally
- Adjustable up to 60° diagonally
- Feed slide with locking - guide rollers easy to adjust.
Specifications
Length
470 mm
Width
245 mm
Height
1000 mm
Stroke
640 mm
Drill-Ø
max 400 mm
Mass
21,5 kg
More information
KB600_KB1000
The multifunctional drill rig with the highest performance features for exact drilling up to a diameter of 600 mm, resp. 1,000 mm. The versatile drill rig, ideal for comprehensive drilling activities in the entire construction sector.
User benefits
- Exceptionally stable & robust construction
- Easy to use
- Can be used with electric and hydraulic motors
- Special bayonet motor quick-change plate
- Drilling columns with different working lengths
Specifications
Length
650 mm
Width
410 mm
Height
1300 mm
Stroke
750 mm
Adjustable
up to 45°
Drill-Ø
200 - 600 mm
More information
RC150
The super light drill rig for all common handheld drill motors. For precise drilling in reinforced concrete and masonry. Ideal for the entire construction industry, heating, sanitary and electrical applications.
User benefits
- Drilling angle adjustment adjustable to 15°, 30° and 45°.
- Drill rig mass only 10 kg
- Drilling diameter up to 152 mm
- Combination base plate dowel / vacuum
- Locking bolt for locking mechanism
Specifications
Length
430 mm
Width
250 mm
Height
800 mm
Stroke
480 mm
Drill-Ø
max. 152 mm
Mass
10 kg
More information
RC250
The medium-sized drill rig for accurate drilling. Ideal for the entire construction industry, in the heating, sanitary and electrical sector. For dimensionally accurate drilling in reinforced concrete and masonry.
User benefits
- 15°, 30° and 45° inclination adjustable
- Lowering unit universally applicable
- Locking bolt for locking mechanism
Specifications
Length
600 mm
Width
320 mm
Height
970 mm
Stroke
650 mm
Drill-Ø
max. 250 mm
Mass
18,5 kg
More information
FLEIKA KF160
The professional drilling rig Fleika KF160 for drilling up to 160 mm diameter.
User benefits
- Reliable integrated quick-change system for mounting of clamping neck adapters and drill motor plates
- Newly developed, easily accessible feed locking device makes it easy to stop and release the feed box
- Stainless steel joint clamps allow the drilling angle to be adjusted to 30° to the front and 60° to the rear
- The crank handle with its quick-change system can be switched smoothly from left to right
Specifications
Length
250 mm
Width
180 mm
Height
800 mm
Stroke
520 mm
Drill-Ø
max. 160 mm
Mass
11,5 kg
More information
FLEIKA KF250
The professional drilling rig Fleika KF 250 for drilling up to 250 mm diameter.
User benefits
- Reduction gear in housing, integrated motor mounting quick-release fastener
- The crank handle with its quick-change system can be changed smoothly from left to right
- Stainless steel joint clamps allow the drilling angle to be adjusted to 30° to the front and 60° to the rear
Specifications
Length
330 mm
Width
200 mm
Height
950 mm
Stroke
590 mm
Drill-Ø
max. 250 mm
Mass
16 kg
More information
FLEIKA KF400
The professional drilling rig KF400 for drillings up to 400 mm diameter.
User benefits
- Quick and simple change of drill motor plate
- Hand crank with quick-release fastener
- Stainless steel pole
- Motor can easily be removed in narrow spaces
- Reduction gear in feed box.
Specifications
Length
360 mm
Width
250 mm
Height
1140 mm
Stroke
690 mm
Drill-Ø
400 mm
Mass
26 kg
More information
FLEIKA KF600
The professional drill rig KF600 for holes up to 600 mm diameter.
User benefits
- Quick and simple change of drill motor plate
- Hand crank with quick-release fastener
- Stainless steel pole
- Motor can easily be removed in narrow spaces
- Reduction gear in feed box
Specifications
Length
410 mm
Width
300 mm
Height
1540 mm
Stroke
1090 mm
Drill-Ø
600 mm
Mass
37 kg
More information
FLEIKA KF700
The professional drill rig KF700 for drillings up to 700 mm diameter.
User benefits
- Quick and simple change of drill motor plate
- Hand crank with quick-release fastener
- Stainless steel pole
- Motor can easily be removed in narrow spaces
- Reduction gear in feed box
Specifications
Length
410 mm
Width
300 mm
Height
1540 mm
Stroke
1010 mm
Drill-Ø
700 mm
Mass
43 kg
More information
FLEIKA KF1000
The professional drill rig KF1000 for drilling up to 1000 mm diameter.
User benefits
- Quick and simple change of drill motor plate
- Hand crank with quick-release fastener
- Stainless steel pole
- Motor can easily be removed in narrow spaces
- Reduction gear in feed box
Specifications
Length
580 mm
Width
525 mm
Height
1650 mm
Stroke
1080 mm
Drill-Ø
1000 mm
Mass
65 kg
More information
DR400A
The professional drill rig for dimensionally accurate drilling up to a diameter of 400 mm, ideal for larger drilling operations in the entire construction sector.
User benefits
- Universal drill motor holder for all common drill motors
- Optional lowering with 1:1 or 1:3 fine feed gearbox
- Lowering unit can be actuated from both sides and can be used universally
- Adjustable up to 45° diagonally
- Feed slide with locking - guide rollers easy to adjust.
Specifications
Length
425 mm
Width
260 mm
Height
1000 mm
Stroke
640 mm
Drill-Ø
max 400 mm
Mass
21,4 kg
More information
DR400ASW
The professional drill rig for dimensionally accurate drilling up to a diameter of 400 mm, ideal for larger drilling operations in the entire construction sector.
User benefits
- Quick-change motor system
- Optional lowering with 1:1 or 1:3 fine feed gearbox
- Lowering unit can be actuated from both sides and can be used universally
- Adjustable up to 60° diagonally
- Feed slide with locking - guide rollers easy to adjust.
Specifications
Length
470 mm
Width
245 mm
Height
1000 mm
Stroke
640 mm
Drill-Ø
max 400 mm
Mass
21,5 kg
More information
KB600_KB1000
The multifunctional drill rig with the highest performance features for exact drilling up to a diameter of 600 mm, resp. 1,000 mm. The versatile drill rig, ideal for comprehensive drilling activities in the entire construction sector.
User benefits
- Exceptionally stable & robust construction
- Easy to use
- Can be used with electric and hydraulic motors
- Special bayonet motor quick-change plate
- Drilling columns with different working lengths
Specifications
Length
650 mm
Width
410 mm
Height
1300 mm
Stroke
750 mm
Adjustable
up to 45°
Drill-Ø
200 - 600 mm
More information
RC150
The super light drill rig for all common handheld drill motors. For precise drilling in reinforced concrete and masonry. Ideal for the entire construction industry, heating, sanitary and electrical applications.
User benefits
- Drilling angle adjustment adjustable to 15°, 30° and 45°.
- Drill rig mass only 10 kg
- Drilling diameter up to 152 mm
- Combination base plate dowel / vacuum
- Locking bolt for locking mechanism
Specifications
Length
430 mm
Width
250 mm
Height
800 mm
Stroke
480 mm
Drill-Ø
max. 152 mm
Mass
10 kg
More information
RC250
The medium-sized drill rig for accurate drilling. Ideal for the entire construction industry, in the heating, sanitary and electrical sector. For dimensionally accurate drilling in reinforced concrete and masonry.
User benefits
- 15°, 30° and 45° inclination adjustable
- Lowering unit universally applicable
- Locking bolt for locking mechanism
Specifications
Length
600 mm
Width
320 mm
Height
970 mm
Stroke
650 mm
Drill-Ø
max. 250 mm
Mass
18,5 kg
More information
FLEIKA KF160
The professional drilling rig Fleika KF160 for drilling up to 160 mm diameter.
User benefits
- Reliable integrated quick-change system for mounting of clamping neck adapters and drill motor plates
- Newly developed, easily accessible feed locking device makes it easy to stop and release the feed box
- Stainless steel joint clamps allow the drilling angle to be adjusted to 30° to the front and 60° to the rear
- The crank handle with its quick-change system can be switched smoothly from left to right
Specifications
Length
250 mm
Width
180 mm
Height
800 mm
Stroke
520 mm
Drill-Ø
max. 160 mm
Mass
11,5 kg
More information
FLEIKA KF250
The professional drilling rig Fleika KF 250 for drilling up to 250 mm diameter.
User benefits
- Reduction gear in housing, integrated motor mounting quick-release fastener
- The crank handle with its quick-change system can be changed smoothly from left to right
- Stainless steel joint clamps allow the drilling angle to be adjusted to 30° to the front and 60° to the rear
Specifications
Length
330 mm
Width
200 mm
Height
950 mm
Stroke
590 mm
Drill-Ø
max. 250 mm
Mass
16 kg
More information
FLEIKA KF400
The professional drilling rig KF400 for drillings up to 400 mm diameter.
User benefits
- Quick and simple change of drill motor plate
- Hand crank with quick-release fastener
- Stainless steel pole
- Motor can easily be removed in narrow spaces
- Reduction gear in feed box.
Specifications
Length
360 mm
Width
250 mm
Height
1140 mm
Stroke
690 mm
Drill-Ø
400 mm
Mass
26 kg
More information
FLEIKA KF600
The professional drill rig KF600 for holes up to 600 mm diameter.
User benefits
- Quick and simple change of drill motor plate
- Hand crank with quick-release fastener
- Stainless steel pole
- Motor can easily be removed in narrow spaces
- Reduction gear in feed box
Specifications
Length
410 mm
Width
300 mm
Height
1540 mm
Stroke
1090 mm
Drill-Ø
600 mm
Mass
37 kg
More information
FLEIKA KF700
The professional drill rig KF700 for drillings up to 700 mm diameter.
User benefits
- Quick and simple change of drill motor plate
- Hand crank with quick-release fastener
- Stainless steel pole
- Motor can easily be removed in narrow spaces
- Reduction gear in feed box
Specifications
Length
410 mm
Width
300 mm
Height
1540 mm
Stroke
1010 mm
Drill-Ø
700 mm
Mass
43 kg
More information
FLEIKA KF1000
The professional drill rig KF1000 for drilling up to 1000 mm diameter.
User benefits
- Quick and simple change of drill motor plate
- Hand crank with quick-release fastener
- Stainless steel pole
- Motor can easily be removed in narrow spaces
- Reduction gear in feed box
Specifications
Length
580 mm
Width
525 mm
Height
1650 mm
Stroke
1080 mm
Drill-Ø
1000 mm
Mass
65 kg
More information
DR400A
The professional drill rig for dimensionally accurate drilling up to a diameter of 400 mm, ideal for larger drilling operations in the entire construction sector.
User benefits
- Universal drill motor holder for all common drill motors
- Optional lowering with 1:1 or 1:3 fine feed gearbox
- Lowering unit can be actuated from both sides and can be used universally
- Adjustable up to 45° diagonally
- Feed slide with locking - guide rollers easy to adjust.
Specifications
Length
425 mm
Width
260 mm
Height
1000 mm
Stroke
640 mm
Drill-Ø
max 400 mm
Mass
21,4 kg
More information
DR400ASW
The professional drill rig for dimensionally accurate drilling up to a diameter of 400 mm, ideal for larger drilling operations in the entire construction sector.
User benefits
- Quick-change motor system
- Optional lowering with 1:1 or 1:3 fine feed gearbox
- Lowering unit can be actuated from both sides and can be used universally
- Adjustable up to 60° diagonally
- Feed slide with locking - guide rollers easy to adjust.
Specifications
Length
470 mm
Width
245 mm
Height
1000 mm
Stroke
640 mm
Drill-Ø
max 400 mm
Mass
21,5 kg
More information
KB600_KB1000
The multifunctional drill rig with the highest performance features for exact drilling up to a diameter of 600 mm, resp. 1,000 mm. The versatile drill rig, ideal for comprehensive drilling activities in the entire construction sector.
User benefits
- Exceptionally stable & robust construction
- Easy to use
- Can be used with electric and hydraulic motors
- Special bayonet motor quick-change plate
- Drilling columns with different working lengths
Specifications
Length
650 mm
Width
410 mm
Height
1300 mm
Stroke
750 mm
Adjustable
up to 45°
Drill-Ø
200 - 600 mm
More information
RC150
The super light drill rig for all common handheld drill motors. For precise drilling in reinforced concrete and masonry. Ideal for the entire construction industry, heating, sanitary and electrical applications.
User benefits
- Drilling angle adjustment adjustable to 15°, 30° and 45°.
- Drill rig mass only 10 kg
- Drilling diameter up to 152 mm
- Combination base plate dowel / vacuum
- Locking bolt for locking mechanism
Specifications
Length
430 mm
Width
250 mm
Height
800 mm
Stroke
480 mm
Drill-Ø
max. 152 mm
Mass
10 kg
More information
RC250
The medium-sized drill rig for accurate drilling. Ideal for the entire construction industry, in the heating, sanitary and electrical sector. For dimensionally accurate drilling in reinforced concrete and masonry.
User benefits
- 15°, 30° and 45° inclination adjustable
- Lowering unit universally applicable
- Locking bolt for locking mechanism
Specifications
Length
600 mm
Width
320 mm
Height
970 mm
Stroke
650 mm
Drill-Ø
max. 250 mm
Mass
18,5 kg
More information
FLEIKA KF160
The professional drilling rig Fleika KF160 for drilling up to 160 mm diameter.
User benefits
- Reliable integrated quick-change system for mounting of clamping neck adapters and drill motor plates
- Newly developed, easily accessible feed locking device makes it easy to stop and release the feed box
- Stainless steel joint clamps allow the drilling angle to be adjusted to 30° to the front and 60° to the rear
- The crank handle with its quick-change system can be switched smoothly from left to right
Specifications
Length
250 mm
Width
180 mm
Height
800 mm
Stroke
520 mm
Drill-Ø
max. 160 mm
Mass
11,5 kg
More information
FLEIKA KF250
The professional drilling rig Fleika KF 250 for drilling up to 250 mm diameter.
User benefits
- Reduction gear in housing, integrated motor mounting quick-release fastener
- The crank handle with its quick-change system can be changed smoothly from left to right
- Stainless steel joint clamps allow the drilling angle to be adjusted to 30° to the front and 60° to the rear
Specifications
Length
330 mm
Width
200 mm
Height
950 mm
Stroke
590 mm
Drill-Ø
max. 250 mm
Mass
16 kg
More information
FLEIKA KF400
The professional drilling rig KF400 for drillings up to 400 mm diameter.
User benefits
- Quick and simple change of drill motor plate
- Hand crank with quick-release fastener
- Stainless steel pole
- Motor can easily be removed in narrow spaces
- Reduction gear in feed box.
Specifications
Length
360 mm
Width
250 mm
Height
1140 mm
Stroke
690 mm
Drill-Ø
400 mm
Mass
26 kg
More information
FLEIKA KF600
The professional drill rig KF600 for holes up to 600 mm diameter.
User benefits
- Quick and simple change of drill motor plate
- Hand crank with quick-release fastener
- Stainless steel pole
- Motor can easily be removed in narrow spaces
- Reduction gear in feed box
Specifications
Length
410 mm
Width
300 mm
Height
1540 mm
Stroke
1090 mm
Drill-Ø
600 mm
Mass
37 kg
More information
FLEIKA KF700
The professional drill rig KF700 for drillings up to 700 mm diameter.
User benefits
- Quick and simple change of drill motor plate
- Hand crank with quick-release fastener
- Stainless steel pole
- Motor can easily be removed in narrow spaces
- Reduction gear in feed box
Specifications
Length
410 mm
Width
300 mm
Height
1540 mm
Stroke
1010 mm
Drill-Ø
700 mm
Mass
43 kg
More information
FLEIKA KF1000
The professional drill rig KF1000 for drilling up to 1000 mm diameter.
User benefits
- Quick and simple change of drill motor plate
- Hand crank with quick-release fastener
- Stainless steel pole
- Motor can easily be removed in narrow spaces
- Reduction gear in feed box
Specifications
Length
580 mm
Width
525 mm
Height
1650 mm
Stroke
1080 mm
Drill-Ø
1000 mm
Mass
65 kg
More information
Accessories
Drilling accessories
More information
Hydraulic core drilling & accessories
More information
Drop-in anchor
More information
Self-tapping concrete screw
More information

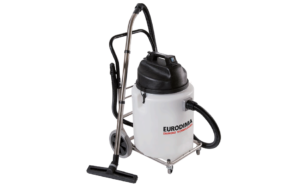

Dry vacuum cleaner VCD 25
More information
Pressurised water container WB45E
More information
Drilling accessories
More information
Hydraulic core drilling & accessories
More information
Drop-in anchor
More information
Self-tapping concrete screw
More information
Dry vacuum cleaner VCD 25
More information
Pressurised water container WB45E
More information
Drilling accessories
More information
Hydraulic core drilling & accessories
More information
Drop-in anchor
More information
Self-tapping concrete screw
More information
Dry vacuum cleaner VCD 25
More information
Pressurised water container WB45E
More information
Every day on a construction site poses new challenges. Every job is unique. We at EURODIMA have developed the right technique and the right system for every requirement.
Do you have to make a cut with a wall saw? You need a circular cut? You don't have enough space for a wall saw?
Whether wall saw, circular saw or wire saw, no matter which material you have to cut - we have the right solution! Our systems guarantee low operating costs even for versatile applications. We are happy to advise you.
Do you have to make a cut with a wall saw? You need a circular cut? You don't have enough space for a wall saw?
Whether wall saw, circular saw or wire saw, no matter which material you have to cut - we have the right solution! Our systems guarantee low operating costs even for versatile applications. We are happy to advise you.
Wall Saws
ServoPower wall saw WM50 / WM90
More information
ServoPower wall saw WS20E / WS20H
More information
ServoPower Upgrade
More information
ServoPower wall saw WM50 / WM90
More information
ServoPower wall saw WS20E / WS20H
More information
ServoPower Upgrade
More information
ServoPower wall saw WM50 / WM90
More information
ServoPower wall saw WS20E / WS20H
More information
ServoPower Upgrade
More information
Wire Saws
ServoPower wire saw
Mehr erfahren
ServoPower wire saw
Mehr erfahren
ServoPower wire saw
Mehr erfahren
Floor cutter
Floor cutter FS800E
More information
Floor cutter, electric 1200E
More information
Floor cutter FS800E
More information
Floor cutter, electric 1200E
More information
Floor cutter FS800E
More information
Floor cutter, electric 1200E
More information
Manual Saws
Cutting saw
More information
Ring saw
More information
Hand saw
More information
Frequency converter
More information
Cutting saw
More information
Ring saw
More information
Hand saw
More information
Frequency converter
More information
Cutting saw
More information
Ring saw
More information
Hand saw
More information
Frequency converter
More information
Safety Cube
EURODIMA is also your specialist for tools and accessories and has the perfect diamond tool for every purpose.
Precise tubes and, depending on the field of work, types of diamond segments with reliable cutting characteristics guarantee efficient core drilling with our core bits.
The diamond cutting blades for wall saws and joint cutters are manufactured according to your requirements and thus cut concrete, reinforced concrete or masonry. Effective. Meticulously.
Our diamond saw wires offer optimum flexibility: Thick walls, nearly all materials, complex cuts, limited space - EURODIMA diamond saw wires master these challenges brilliantly. We are happy to tell you more!
Precise tubes and, depending on the field of work, types of diamond segments with reliable cutting characteristics guarantee efficient core drilling with our core bits.
The diamond cutting blades for wall saws and joint cutters are manufactured according to your requirements and thus cut concrete, reinforced concrete or masonry. Effective. Meticulously.
Our diamond saw wires offer optimum flexibility: Thick walls, nearly all materials, complex cuts, limited space - EURODIMA diamond saw wires master these challenges brilliantly. We are happy to tell you more!
Drill Bits
ETX wet drill bit, soldered/welded with 1 1/4″ UNC-connection
More information
ETX diamond segment
More information
DUK50 drill bit brazed/welded, with 1¼” UNC connection
DUK50
31DUK
More information
DUR80 ring drill bit brazed with R½” male thread
DUR80
32DUR
More information
DUK50 diamond segment
DUK50
DUK50
More information
DUR80 Ring segment
DUR80
3DUR
More information
ED5 drill bit brazed, with 1¼” UNC connection
ED5
31ED5
More information
DU69 drill bit brazed, with 1¼” UNC connection
DU69
31DU69
More information
ED5 diamond segment
ED5
3ED5
More information
DU69 diamond segment
DU69
3DU
More information
AX7 drill bit brazed, with set diamonds
More information
AX7/AX9 diamond segment with set diamonds
More information
AX9 dry drill bit brazed/welded, with 1¼” UNC-connection and set diamonds
More information
Drill bit tube with 1¼” connection
31KR050
More information
Drill bit tube with ½“ connection
32KR040
More information
Soldering and repair accessories
More information
EURODIMA Service Drill bit retipping
More information
ETX wet drill bit, soldered/welded with 1 1/4″ UNC-connection
More information
ETX diamond segment
More information
DUK50 drill bit brazed/welded, with 1¼” UNC connection
31DUK
More information
DUR80 ring drill bit brazed with R½” male thread
32DUR
More information
DUK50 diamond segment
DUK50
More information
DUR80 Ring segment
3DUR
More information
ED5 drill bit brazed, with 1¼” UNC connection
31ED5
More information
DU69 drill bit brazed, with 1¼” UNC connection
31DU69
More information
ED5 diamond segment
3ED5
More information
DU69 diamond segment
3DU
More information
AX7 drill bit brazed, with set diamonds
More information
AX7/AX9 diamond segment with set diamonds
More information
AX9 dry drill bit brazed/welded, with 1¼” UNC-connection and set diamonds
More information
Drill bit tube with 1¼” connection
More information
Drill bit tube with ½“ connection
More information
Soldering and repair accessories
More information
EURODIMA Service Drill bit retipping
More information
ETX wet drill bit, soldered/welded with 1 1/4″ UNC-connection
More information
ETX diamond segment
More information
DUK50 drill bit brazed/welded, with 1¼” UNC connection
31DUK
More information
DUR80 ring drill bit brazed with R½” male thread
32DUR
More information
DUK50 diamond segment
DUK50
More information
DUR80 Ring segment
3DUR
More information
ED5 drill bit brazed, with 1¼” UNC connection
31ED5
More information
DU69 drill bit brazed, with 1¼” UNC connection
31DU69
More information
ED5 diamond segment
3ED5
More information
DU69 diamond segment
3DU
More information
AX7 drill bit brazed, with set diamonds
More information
AX7/AX9 diamond segment with set diamonds
More information
AX9 dry drill bit brazed/welded, with 1¼” UNC-connection and set diamonds
More information
Drill bit tube with 1¼” connection
More information
Drill bit tube with ½“ connection
More information
Soldering and repair accessories
More information
EURODIMA Service Drill bit retipping
More information
Cutting Discs
Diamond cutting disc LB45
More information
Diamond cutting disc TL45
More information
Diamond cutting disc SPL20 €+
More information
Diamond cutting disc LA85
More information
Diamond cutting disc LA90 €+
More information
Diamond cutting disc SPS40
More information
Diamond cutting disc SK28
More information
Diamond cup wheel ST42 €+
More information
Diamond cutting disc FBL90
More information
Diamond cutting ring SR
More information
Diamond cutting disc E26
More information
Diamond cutting disc AS80 €+
More information
Diamond cutting disc SA80
More information
Wall saw blade ML15
More information
Wall saw blade ML15V
More information
Wall saw blade with set diamonds ML88
More information
Wall saw blade with set diamonds ML89
AS30 · AS40 · AS80 · AS85
3AS80C
More information
Cutting disc accessories
More information
Special tools
More information
EURODIMA Service Retipping and repair of wall saw blades
More information
Diamond cutting disc LB45
More information
Diamond cutting disc TL45
More information
Diamond cutting disc SPL20 €+
More information
Diamond cutting disc LA85
More information
Diamond cutting disc LA90 €+
More information
Diamond cutting disc SPS40
More information
Diamond cutting disc SK28
More information
Diamond cup wheel ST42 €+
More information
Diamond cutting disc FBL90
More information
Diamond cutting ring SR
More information
Diamond cutting disc E26
More information
Diamond cutting disc AS80 €+
More information
Diamond cutting disc SA80
More information
Wall saw blade ML15
More information
Wall saw blade ML15V
More information
Wall saw blade with set diamonds ML88
More information
Wall saw blade with set diamonds ML89
3AS80C
More information
Cutting disc accessories
More information
Special tools
More information
EURODIMA Service Retipping and repair of wall saw blades
More information
Diamond cutting disc LB45
More information
Diamond cutting disc TL45
More information
Diamond cutting disc SPL20 €+
More information
Diamond cutting disc LA85
More information
Diamond cutting disc LA90 €+
More information
Diamond cutting disc SPS40
More information
Diamond cutting disc SK28
More information
Diamond cup wheel ST42 €+
More information
Diamond cutting disc FBL90
More information
Diamond cutting ring SR
More information
Diamond cutting disc E26
More information
Diamond cutting disc AS80 €+
More information
Diamond cutting disc SA80
More information
Wall saw blade ML15
More information
Wall saw blade ML15V
More information
Wall saw blade with set diamonds ML88
More information
Wall saw blade with set diamonds ML89
3AS80C
More information
Cutting disc accessories
More information
Special tools
More information
EURODIMA Service Retipping and repair of wall saw blades
More information
Diamond Saw Wires
Diamond wire
3DS40
More information
Diamond wire
3DS40
More information
Diamond wire
3DS40
More information
